Introduction:
Boolean Algebra, also known as
binary algebra or symbolic logic, is a mathematical system developed by George
Boole in the mid-19th century. It is a branch of algebra that deals with binary
variables and logical operations, primarily focusing on true (1) and false (0) values. Boolean Algebra provides a formalized way to manipulate logical
expressions and make decisions based on binary logic, forming modern digital technology's foundation.
Boolean Algebra is widely used in
various fields, such as digital electronics, computer programming, digital
communication systems, and artificial intelligence. Understanding the
principles and operations of Boolean Algebra is crucial for professionals in
these fields to design and analyze complex digital systems effectively.
This article will provide a
comprehensive overview of Boolean Algebra, including its history, basic
operations, laws, applications, and practical examples.
History of Boolean Algebra:
Boolean Algebra is named after
George Boole, an English mathematician and logician who first formulated the
system in his book "The Mathematical Analysis of Logic," published in
1847. Boole's work was groundbreaking, providing a mathematical foundation for symbolic logic and laying the groundwork for modern digital technology.
Boole's algebraic system was based
on the concept of binary logic, developed by philosophers such as
Aristotle and Leibniz in earlier times. However, Boole's approach was unique as
he used algebraic symbols and equations to represent logical operations, making
it easier to manipulate and analyze logical expressions.
Boole's work on Boolean Algebra significantly impacted various fields, including mathematics, philosophy, and
computer science. His concepts and ideas formed the basis for developing digital electronic circuits and designing computer systems, leading to
the birth of modern digital technology.
Basic Operations of Boolean Algebra:
Boolean Algebra is based on three
fundamental logical operations: AND, OR, and NOT. These operations are
performed on binary variables, which can take on the values of true (1) or
false (0). The basic operations of Boolean Algebra are defined as follows:
1. AND Operation (·): The AND
operation, known as logical multiplication, is denoted by the dot (·)
symbol in Boolean Algebra. It represents the logical conjunction, where the
result is true (1) only if both operands are true (1) and false (0) otherwise.
The truth table for the AND operation is as follows:
2. OR Operation (+): The OR operation, also known as
logical addition, is denoted by the plus (+) symbol in Boolean Algebra. It
represents the logical disjunction, where the result is true (1) if at least
one operand is true (1) and false (0) if both operands are false (0). The
truth table for the OR operation is as follows:
3. NOT Operation () symbol in Boolean Algebra. It represents
the logical complement, where the result is the opposite of the operand. If the
operand is true (1), the NOT operation will yield false (0), and vice versa.

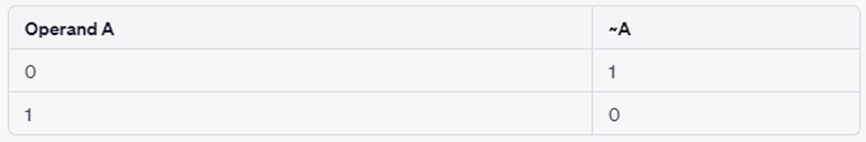

The truth table for the NOT operation is as follows:
These three basic operations of Boolean Algebra can be
combined to form complex logical expressions and perform logical computations
in digital systems.
Laws of Boolean Algebra:
Boolean Algebra follows several laws and rules that
govern the manipulation of logical expressions. These laws provide a systematic
way to simplify and analyze complex logical expressions. Some of the important
laws of Boolean Algebra are:
Commutative Law:
The Commutative Law states that the order of operands
does not affect the result of an AND or OR operation. Mathematically, it can be
expressed as:
A · B = B · A (AND operation)
A + B = B + A (OR operation)
Associative Law:
The Associative Law states that the grouping of operands
does not affect the result of an AND or OR operation. Mathematically, it can be
expressed as:
(A · B) · C = A · (B · C) (AND operation)
(A + B) + C = A + (B + C) (OR operation)
Distributive Law:
The Distributive Law states that an AND or OR operation
can be distributed over another AND or OR operation. Mathematically, it can be
expressed as:
A · (B + C) = (A · B) + (A · C) (AND operation over OR
operation)
A + (B · C) = (A + B) · (A + C) (OR operation over AND
operation)
Identity Law:
The Identity Law states that identity elements exist for AND and OR operations. Mathematically, it can be expressed as:
A · 1 = A (AND operation)
A + 0 = A (OR operation)
Negation Law:
The Negation Law states that the NOT operation can be
applied separately to an AND or OR operation. Mathematically, it can be
expressed as:
~(A · B) = ~A + ~B (Negation of AND operation)
~(A + B) = ~A · ~B (Negation of OR operation)
These laws provide a solid foundation for manipulating and simplifying logical expressions in Boolean Algebra,
enabling efficient analysis and design of digital systems.
Applications of Boolean Algebra:
Boolean Algebra has wide-ranging applications in various
fields, including digital electronics, computer programming, digital
communication systems, and artificial intelligence. Some of the key
applications of Boolean Algebra are:
1. Digital Electronics:
Boolean Algebra is extensively used in designing and analyzing digital electronic circuits, such as logic gates, flip-flops, and
memories. Logic gates, the building blocks of digital systems,
implement the basic operations of Boolean Algebra, such as AND, OR, and NOT, to
perform logical computations. Boolean Algebra simplifies and optimizes logical expressions, designs efficient digital circuits, and analyzes their
behavior.
2. Computer Programming:
Boolean Algebra is essential in computer
programming, especially in designing and implementing logical operations and
decision-making processes. It is widely used in programming languages like C,
C++, Python, and Java to implement conditional statements, such as if-else
statements and switch statements, which allow programmers to make decisions
based on the logical values of variables. Boolean Algebra is also used in
designing Boolean flags, which are binary variables that indicate the
occurrence or absence of a certain condition or event in a program.
3. Digital Communication Systems:
Boolean Algebra plays a crucial role in designing and analyzing digital communication systems, such as error correction codes,
modulation schemes, and routing algorithms. It is used to model and optimize
the behavior of digital communication systems, which rely on logical operations
to process and transmit binary data efficiently and reliably.
4. Artificial Intelligence:
Boolean Algebra is widely used in artificial intelligence
(AI) and machine learning algorithms to model logical reasoning and
decision-making processes. It represents and manipulates logical
expressions and rules in knowledge representation and reasoning systems, such
as expert systems and rule-based inference engines. Boolean Algebra is also
used in designing Boolean networks, which are graphical models representing the logical relationships among variables in a system, and in developing algorithms for searching, planning, and learning in AI systems.
Conclusion:
Boolean Algebra, named after George Boole, is a
mathematical system that deals with logical values and operations, providing a
formal and systematic approach to represent, manipulate, and analyze logical
expressions. It has become an indispensable tool in various fields, including
digital electronics, computer programming, digital communication systems, and
artificial intelligence. The basic operations of Boolean Algebra, such as AND,
OR, and NOT, can be combined to form complex logical expressions and are
governed by laws and rules that enable efficient manipulation and
simplification of logical expressions. Boolean Algebra provides a solid
foundation for designing and analyzing digital systems and has contributed significantly to modern technology and computing advancement.
